Ruby open source: feedbin

The product

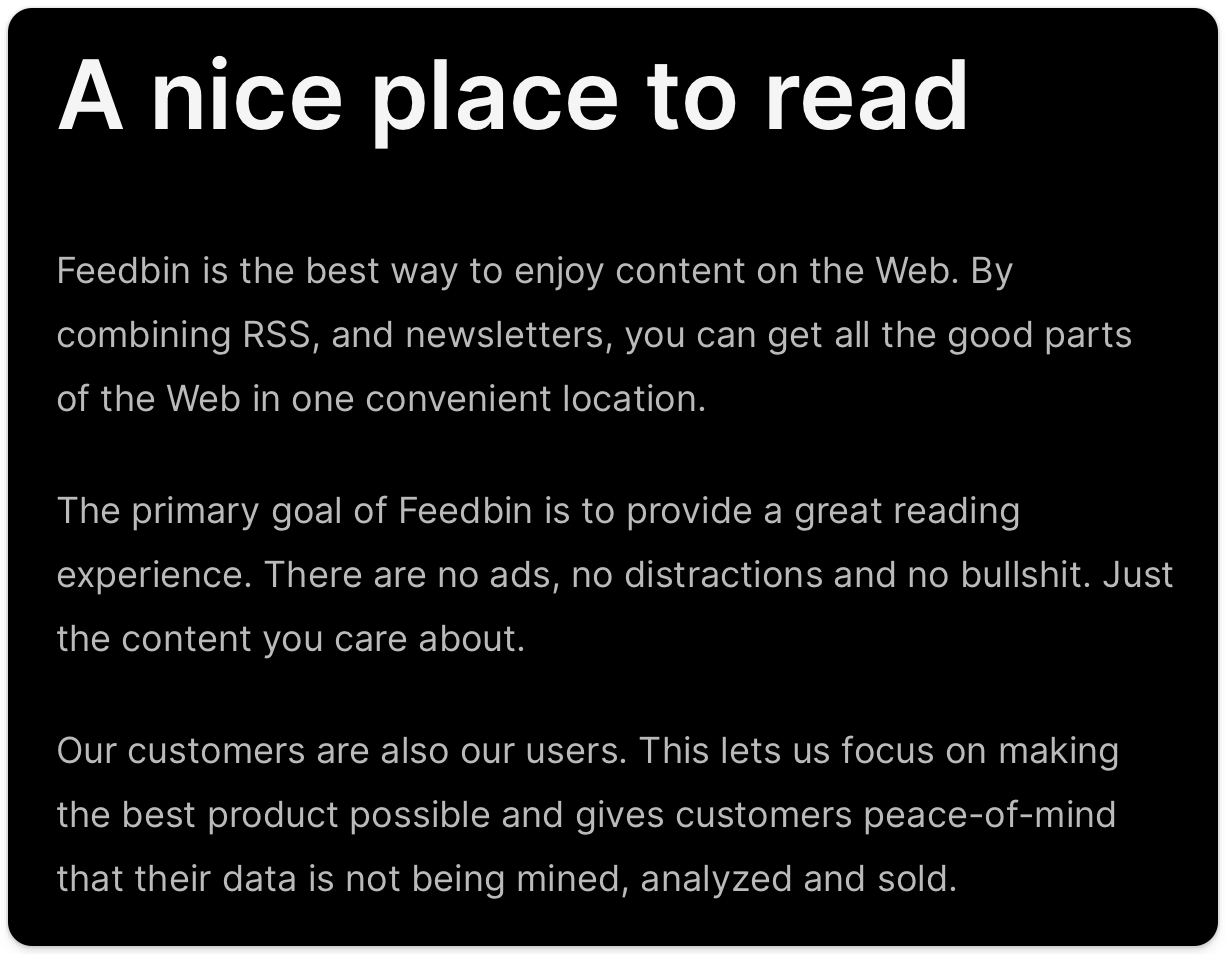

“Feedbin is the best way to enjoy content on the Web. By combining RSS, and newsletters, you can get all the good parts of the Web in one convenient location”

Open source

The open-source repository can be found at https://github.com/feedbin/feedbin

License

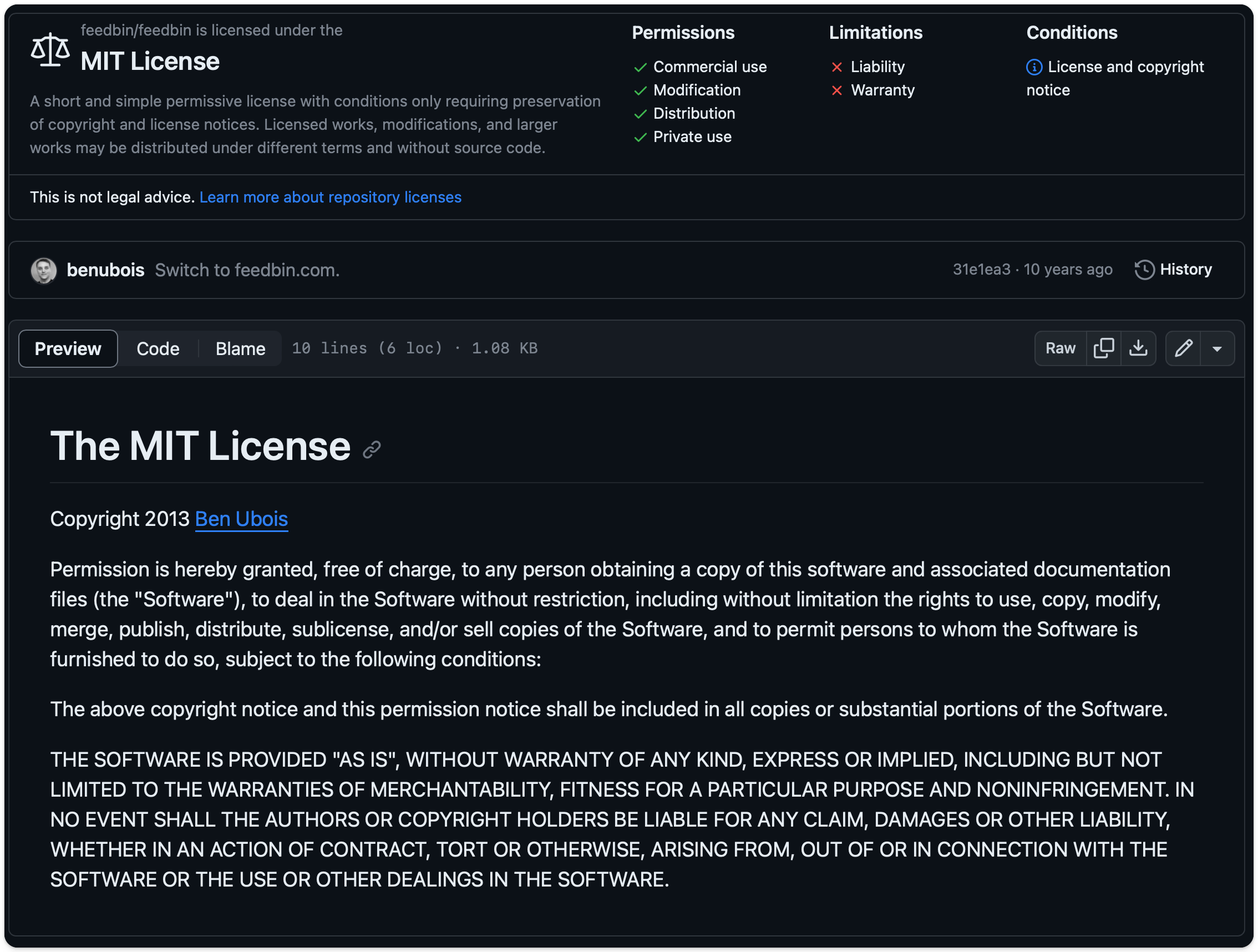

The license they use is MIT:

Technical review

Ruby and Rails version

They are currently using:

Ruby version 3.2.2
They used a fork of Rails at https://github.com/feedbin/rails forked from https://github.com/Shopify/rails. They are using a branch called 7-1-stable-invalid-cache-entries - It seems to be Rails 7.1 and about 1 month behind the Shopify/rails which is usually pretty up to date with main Rails

Architecture

Code Architecture:

They are using the standard Rails organisation of MVC.

Database:

The DB is PostgreSQL

Jobs queue:

Sidekiq

On the front-end side:

They use .html.erb
They are using Phlex for components
They are using Jquery for the JS library
They have some custom JS code written in CoffeeScript
They are using Hotwire via importmaps
They are using Tailwind

Stats

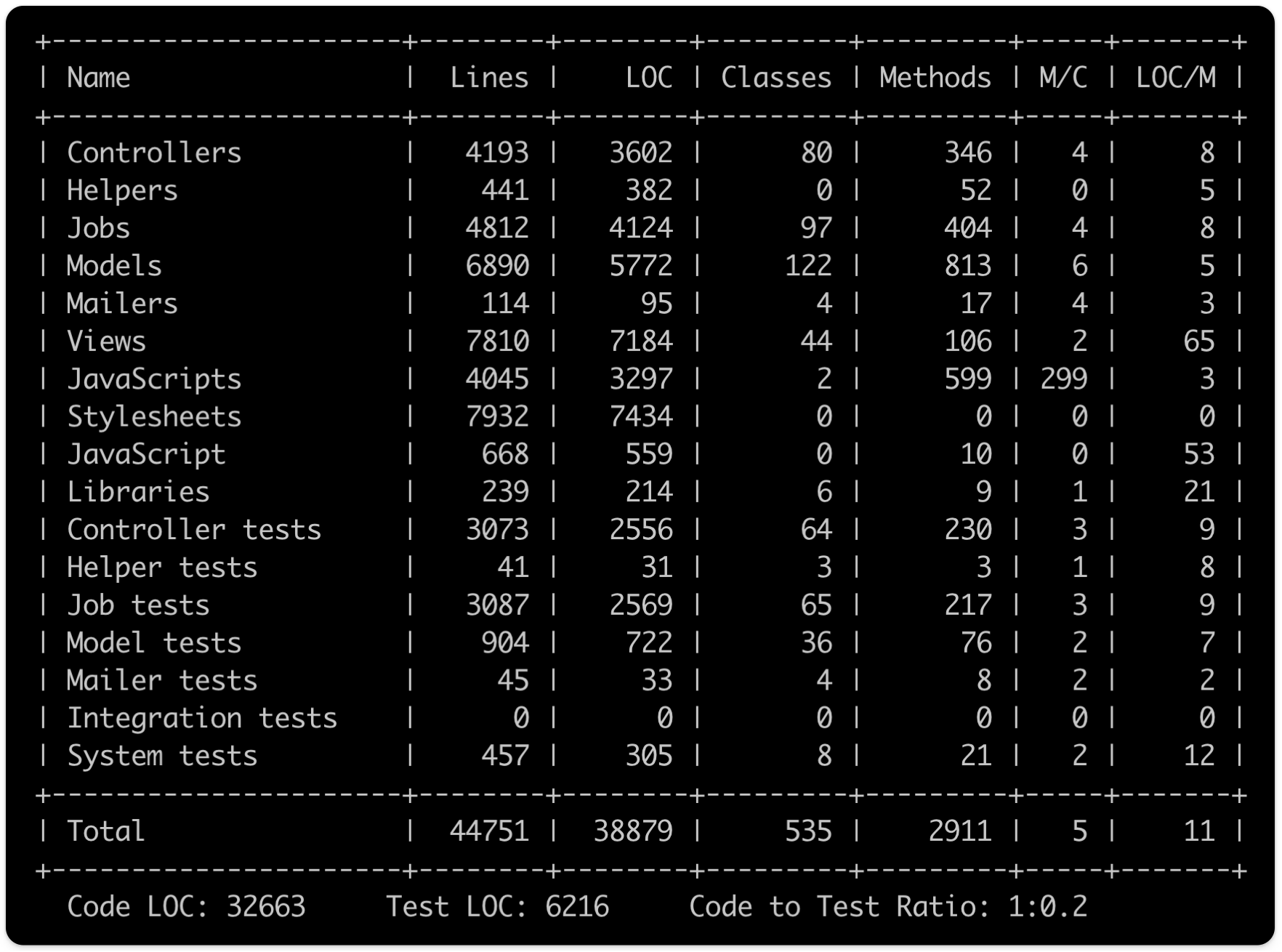

Running /bin/rails stats will output the following:

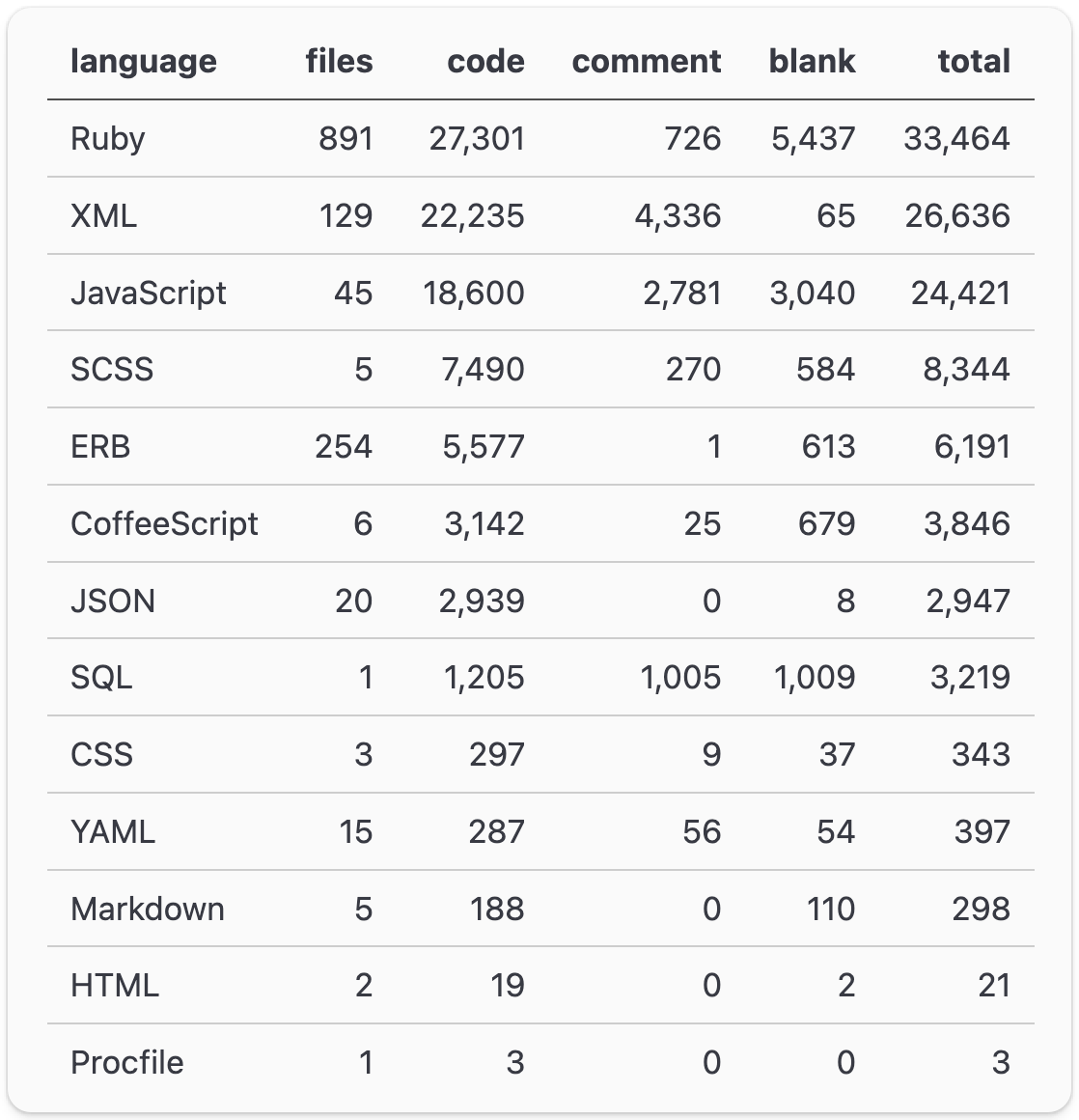

Running VSCodeCounter will give the following stats:

Style Guide

For Ruby:

They are using standardrb as the Style Guide with no customisations.

Storage, Persistence and in-memory storage

The DB is PostgreSQL.

They are not using the schema.rb but the structure.sql format for DB schema dump is configured via application.rb:

module Feedbin
    class Application < Rails::Application
        # other configs
        config.active_record.schema_format = :sql
        # other configs
    end
end

Enabled PSQL extensions:

hstore - “data type for storing sets of (key, value) pairs”
pg_stat_statements - “track planning and execution statistics of all SQL statements executed”
uuid-ossp - “generate universally unique identifiers (UUIDs)”

CREATE EXTENSION IF NOT EXISTS hstore WITH SCHEMA public;
COMMENT ON EXTENSION hstore IS 'data type for storing sets of (key, value) pairs';

CREATE EXTENSION IF NOT EXISTS pg_stat_statements WITH SCHEMA public;
COMMENT ON EXTENSION pg_stat_statements IS 'track planning and execution statistics of all SQL statements executed';


CREATE EXTENSION IF NOT EXISTS "uuid-ossp" WITH SCHEMA public;
COMMENT ON EXTENSION "uuid-ossp" IS 'generate universally unique identifiers (UUIDs)';

Redis is configured to be used with Sidekiq.

This is what the redis initializer looks like:

# https://github.com/feedbin/feedbin/blob/main/config/initializers/redis.rb#L1

defaults = {connect_timeout: 5, timeout: 5}
defaults[:url] = ENV["REDIS_URL"] if ENV["REDIS_URL"]

$redis = {}.tap do |hash|
  options2 = defaults.dup
  if ENV["REDIS_URL_PUBLIC_IDS"] || ENV["REDIS_URL_CACHE"]
    options2[:url] = ENV["REDIS_URL_PUBLIC_IDS"] || ENV["REDIS_URL_CACHE"]
  end
  hash[:refresher] = ConnectionPool.new(size: 10) { Redis.new(options2) }
end

Further, there is a RedisLock configured like this:

# https://github.com/feedbin/feedbin/blob/main/app/models/redis_lock.rb#L1

class RedisLock
  def self.acquire(lock_name, expiration_in_seconds = 55)
    Sidekiq.redis { _1.set(lock_name, "locked", ex: expiration_in_seconds, nx: true) }
  end
end

Further down this is used in a clock.rb (that defines scheduled tasks to run):

# https://github.com/feedbin/feedbin/blob/main/lib/clock.rb#L8

every(10.seconds, "clockwork.very_frequent") do
  if RedisLock.acquire("clockwork:send_stats:v3", 8)
    SendStats.perform_async
  end

  if RedisLock.acquire("clockwork:cache_entry_views", 8)
    CacheEntryViews.perform_async(nil, true)
  end

  if RedisLock.acquire("clockwork:downloader_migration", 8)
    FeedCrawler::PersistCrawlData.perform_async
  end
end

every(1.minutes, "clockwork.frequent") do
  if RedisLock.acquire("clockwork:feed:refresher:scheduler:v2")
    FeedCrawler::ScheduleAll.perform_async
  end

  if RedisLock.acquire("clockwork:harvest:embed:data")
    HarvestEmbeds.perform_async(nil, true)
  end
end

every(1.day, "clockwork.daily", at: "7:00", tz: "UTC") do
  if RedisLock.acquire("clockwork:delete_entries:v2")
    EntryDeleterScheduler.perform_async
  end

  if RedisLock.acquire("clockwork:trial_expiration:v2")
    TrialExpiration.perform_async
  end

  if RedisLock.acquire("clockwork:web_sub_maintenance")
    WebSub::Maintenance.perform_async
  end
end

Gems used

Here are some of the gems used:

sax-machine - “A declarative sax parsing library backed by Nokogiri”
feedjira - “Feedjira is a Ruby library designed to parse feeds”
html-pipeline - “HTML processing filters and utilities. This module is a small framework for defining CSS-based content filters and applying them to user provided content”
apnotic - “A Ruby APNs HTTP/2 gem able to provide instant feedback”
autoprefixer-rails - “Autoprefixer is a tool to parse CSS and add vendor prefixes to CSS rules using values from the Can I Use database. This gem provides Ruby and Ruby on Rails integration with this JavaScript tool”
clockwork - “Clockwork is a cron replacement. It runs as a lightweight, long-running Ruby process which sits alongside your web processes (Mongrel/Thin) and your worker processes (DJ/Resque/Minion/Stalker) to schedule recurring work at particular times or dates”
down - “Streaming downloads using net/http, http.rb, HTTPX or wget”
phlex-rails - “Phlex is a framework that lets you compose web views in pure Ruby”
premailer-rails - “This gem is a drop in solution for styling HTML emails with CSS without having to do the hard work yourself”
raindrops - “raindrops is a real-time stats toolkit to show statistics for Rack HTTP servers. It is designed for preforking servers such as unicorn, but should support any Rack HTTP server on platforms supporting POSIX shared memory”
strong_migrations - “Catch unsafe migrations in development”
web-push - “This gem makes it possible to send push messages to web browsers from Ruby backends using the Web Push Protocol”
stripe-ruby-mock - “A drop-in library to test stripe without hitting their servers”
rails-controller-testing - “Brings back assigns and assert_template to your Rails tests”

There are many other gems used, I only selected few here. Browse the Gemfile to discover more.

What could be mentioned is that they use their fork for some of the gems included in the file:

# https://github.com/feedbin/feedbin/blob/main/Gemfile

# other gems

gem "rails", github: "feedbin/rails", branch: "7-1-stable-invalid-cache-entries"

# some other gems

gem "http",                github: "feedbin/http",                branch: "feedbin"
gem "carrierwave",         github: "feedbin/carrierwave",         branch: "feedbin"
gem "sax-machine",         github: "feedbin/sax-machine",         branch: "feedbin"
gem "feedjira",            github: "feedbin/feedjira",            branch: "f2"
gem "feedkit",             github: "feedbin/feedkit",             branch: "master"
gem "html-pipeline",       github: "feedbin/html-pipeline",       branch: "feedbin"
gem "html_diff",           github: "feedbin/html_diff",           ref: "013e1bb"
gem "twitter",             github: "feedbin/twitter",             branch: "feedbin"

# other gems

group :development, :test do
  gem "stripe-ruby-mock", github: "feedbin/stripe-ruby-mock", branch: "feedbin", require: "stripe_mock"
# other gems
end

# other gem groups

Code & Design Patterns

Code Organisation

Under /app there are 3 folders different from the ones that Rails comes with:

presenters
uploaders
validators

The lib folder includes very few extra objects. Most of them seems to be related to communicating with external services.

Maybe worth mentioning from lib folder is the ConditionalSassCompressor

# https://github.com/feedbin/feedbin/blob/main/lib/conditional_sass_compressor.rb#L1

class ConditionalSassCompressor
  def compress(string)
    return string if string =~ /tailwindcss/
    options = { syntax: :scss, cache: false, read_cache: false, style: :compressed}
    begin
      Sprockets::Autoload::SassC::Engine.new(string, options).render
    rescue => e
      puts "Could not compress '#{string[0..65]}'...: #{e.message}, skipping compression"
      string
    end
  end
end

This is used to configure:

# https://github.com/feedbin/feedbin/blob/main/config/application.rb#L47
config.assets.css_compressor = ConditionalSassCompressor.new

Routes

There is a combination of RESTful routes and non-restful routes.

Here is an example from entries in the routes.rb :

# https://github.com/feedbin/feedbin/blob/main/config/routes.rb#L133

  resources :entries, only: [:show, :index, :destroy] do
    member do
      post :content
      post :unread_entries, to: "unread_entries#update"
      post :starred_entries, to: "starred_entries#update"
      post :mark_as_read, to: "entries#mark_as_read"
      post :recently_read, to: "recently_read_entries#create"
      post :recently_played, to: "recently_played_entries#create"
      get :push_view
      get :newsletter
    end
    collection do
      get :starred
      get :unread
      get :preload
      get :search
      get :recently_read, to: "recently_read_entries#index"
      get :recently_played, to: "recently_played_entries#index"
      get :updated, to: "updated_entries#index"
      post :mark_all_as_read
      post :mark_direction_as_read
    end
  end

Controllers

The controllers are mostly what I would call vanilla Rails controllers.

Three notes about them:

Some of them are responding with JS usually using USJ or JQuery to change elements from the page.
They contain non-Rails standard actions (actions that are not show, index, new, create …)
There is a namespaced api folder that contains APIs used by mobile apps

Here is one simple example for DELETE /entries/:id , the controller looks like this:

# https://github.com/feedbin/feedbin/blob/main/app/controllers/entries_controller.rb#L238
  def destroy
    @user = current_user
    @entry = @user.entries.find(params[:id])
    if @entry.feed.pages?
      EntryDeleter.new.delete_entries(@entry.feed_id, @entry.id)
    end
  end

And here is the view destroy.js.erb :

$('[data-behavior~=entries_target] [data-entry-id=<%= @entry.id %>]').remove();

feedbin.Counts.get().removeEntry(<%= @entry.id %>, <%= @entry.feed_id %>, 'unread')
feedbin.Counts.get().removeEntry(<%= @entry.id %>, <%= @entry.feed_id %>, 'starred')
feedbin.applyCounts(true)

feedbin.clearEntry();
feedbin.fullScreen(false)

The main pattern adopted to controllers is to have some logic in them and delegate to jobs some part of the processing.

The repo contains mostly straight-forward controllers like this one:

# https://github.com/feedbin/feedbin/blob/main/app/controllers/pages_internal_controller.rb#L1
class PagesInternalController < ApplicationController

  def create
    @entry = SavePage.new.perform(current_user.id, params[:url], nil)
    get_feeds_list
  end
end

But also few controllers that include some logic:

# https://github.com/feedbin/feedbin/blob/main/app/controllers/api/podcasts/v1/feeds_controller.rb#L8

 def show
  url = hex_decode(params[:id])
  @feed = Feed.find_by_feed_url(url)
  if @feed.present?
    if @feed.standalone_request_at.blank?
      FeedStatus.new.perform(@feed.id)
      FeedUpdate.new.perform(@feed.id)
    end
  else
    feeds = FeedFinder.feeds(url)
    @feed = feeds.first
  end

  if @feed.present?
    @feed.touch(:standalone_request_at)
  else
    status_not_found
  end
rescue => exception
  if Rails.env.production?
    ErrorService.notify(exception)
    status_not_found
  else
    raise exception
  end
end

Even with this structure, I find all controllers easy to read and I think they can be easier to change.

Models

The app/models folders contain both ActiveRecord and normal Ruby objects. With few exceptions, they are not namespaced.

Jobs

The jobs folder contains Sidekiq jobs which are used to do processing on various objects. They are usually called from controllers and most of them are async.

Here is one job that is caching views:

# https://github.com/feedbin/feedbin/blob/main/app/jobs/cache_entry_views.rb#L1

class CacheEntryViews
  include Sidekiq::Worker
  include SidekiqHelper

  SET_NAME = "#{name}-ids"

  def perform(entry_id, process = false)
    if process
      cache_views
    else
      add_to_queue(SET_NAME, entry_id)
    end
  end

  def cache_views
    entry_ids = dequeue_ids(SET_NAME)
    entries = Entry.where(id: entry_ids).includes(feed: [:favicon])
    ApplicationController.render({
      partial: "entries/entry",
      collection: entries,
      format: :html,
      cached: true
    })
    ApplicationController.render({
      layout: nil,
      template: "api/v2/entries/index",
      assigns: {entries: entries},
      format: :html,
      locals: {
        params: {mode: "extended"}
      }
    })
  end
end

Presenters

There is a BasePresenter and all other presenters are extending it via inheritance:

This controller defines a private method called presents:

# https://github.com/feedbin/feedbin/blob/main/app/presenters/base_presenter.rb#L1

class BasePresenter
  def initialize(object, locals, template)
    @object = object
    @locals = locals
    @template = template
  end

  # ...

  private

  def self.presents(name)
    define_method(name) do
      @object
    end
  end
end

and it is used like this for example:

# https://github.com/feedbin/feedbin/blob/main/app/presenters/user_presenter.rb#L2

class UserPresenter < BasePresenter
  presents :user
  delegate_missing_to :user

  # ... more code

  def theme
    result = settings["theme"].present? ? settings["theme"] : nil
    result || user.theme || "auto"
  end
  # ... other code
end

To use the presenters, there is a helper defined in ApplicationHelper will instantiate the proper helper based on the object class:

module ApplicationHelper
  def present(object, locals = nil, klass = nil)
    klass ||= "#{object.class}Presenter".constantize
    presenter = klass.new(object, locals, self)
    yield presenter if block_given?
    presenter
  end

  # more code ...
end

and it is used like this in views:

<% present @user do |user_presenter| %>
    <% @class = "settings-body settings-#{params[:action]} theme-#{user_presenter.theme}"%>
<% end %>

ApplicationComponents

Components are based on Phlex and they inherit from ApplicationComponent

It defines a method to add Stimulus controller in components like this:

# https://github.com/feedbin/feedbin/blob/main/app/views/components/application_component.rb#L25

  def stimulus(controller:, actions: {}, values: {}, outlets: {}, classes: {}, data: {})
    stimulus_controller = controller.to_s.dasherize

    action = actions.map do |event, function|
      "#{event}->#{stimulus_controller}##{function.camelize(:lower)}"
    end.join(" ").presence

    values.transform_keys! do |key|
      [controller, key, "value"].join("_").to_sym
    end

    outlets.transform_keys! do |key|
      [controller, key, "outlet"].join("_").to_sym
    end

    classes.transform_keys! do |key|
      [controller, key, "class"].join("_").to_sym
    end

    { controller: stimulus_controller, action: }.merge!({ **values, **outlets, **classes, **data})
  end

Where we can also see a bit of hash literal omission at {controller: stimulus_controller, action: }

But more interesting that this method that helps defining a Stimulus controller, is the method used to define a Stimulus item that uses binding to get variables from the object where it is used:

# https://github.com/feedbin/feedbin/blob/main/app/views/components/application_component.rb#L47

  def stimulus_item(target: nil, actions: {}, params: {}, data: {}, for:)
    stimulus_controller = binding.local_variable_get(:for).to_s.dasherize

    action = actions.map do |event, function|
      "#{event}->#{stimulus_controller}##{function.to_s.camelize(:lower)}"
    end.join(" ").presence

    params.transform_keys! do |key|
      :"#{binding.local_variable_get(:for)}_#{key}_param"
    end

    defaults = { **params, **data }

    if action
      defaults[:action] = action
    end

    if target
      defaults[:"#{binding.local_variable_get(:for)}_target"] = target.to_s.camelize(:lower)
    end

    defaults
  end

The part with binding does the following:

stimulus_controller = binding.local_variable_get(:for).to_s.dasherize This line retrieves the value of the local variable for, converts it to a string, and then applies the dasherize method (presumably to format it for use in a specific context, like a CSS class or an identifier in HTML).
Apparently binding.local_variable_get should not be needed as the variable is passed a keyword parameter to the method. But the name of the variable is for which is a reserved word and thus if the code would have been stimulus_controller = for.to_s_dasherize that would have raised syntax error, unexpected '.' (SyntaxError)

This is a way to have keyword arguments named as reserved words and still be able to use them.

ComponentsPreview

All components can be previewed via Lookbook and they can be found in test/components

Testing

For testing it uses Minitest, the default testing framework from Rails. It uses fixtures to set up the test db.

Tests are simple and direct, containing all preconditions and postconditions in each test. This is great for following what each test is doing.

There are controller tests, model tests, job tests and some system tests. There are more controller tests than system tests making the test suite run quite fast. Also the jobs are covered pretty good with testing as there is a log of logic in the jobs.

Custom assertions

There are some custom assertions created specifically to work with collections: assert_has_keys will check if all keys are included in the hash and assert_equal_ids will check if the two collections provided have the same ids (one being a collection of objects and the other one being a hash).

# https://github.com/feedbin/feedbin/blob/main/test/support/assertions.rb#L3

    def assert_has_keys(keys, hash)
      assert(keys.all? { |key| hash.key?(key) })
    end

    def assert_equal_ids(collection, results)
      expected = Set.new(collection.map(&:id))
      actual = Set.new(results.map { |result| result["id"] })
      assert_equal(expected, actual)
    end

Conclusion

In conclusion, Feedbin is an open-source project that combines RSS feeds and newsletters into a convenient platform.

It utilizes Ruby on Rails, PostgreSQL, Sidekiq, and various other technologies to provide a robust and efficient service.

The code is well-organized and simple to follow the logic and what is happening. I think it will make it easy for anyone to contribute to this repo. If you want to run this yourself locally you should take a look at the feedbin-docker.

Enjoyed this article?

👉 Join my Short Ruby News newsletter for weekly Ruby updates from the community and visit rubyandrails.info, a directory with learning content about Ruby.

👐 Subscribe to my Ruby and Ruby on rails courses over email at learn.shortruby.com - effortless learning anytime, anywhere

🤝 Let’s connect on Ruby.social or Linkedin or Twitter where I post mainly about Ruby and Rails.

🎥 Follow me on my YouTube channel for short videos about Ruby

All about coding

Ruby and Rails technical content written by Lucian Ghinda
